Quick Answer: The 0.8mm option is a thinner 316 stainless-steel single-layer mesh. The 1.2mm option uses 304 stainless steel in a double-layer structure; on this model, the larger-hole side faces upward and the fine-hole side faces the prepared coffee puck. Neither thickness is universally better. Choose by basket diameter, available headspace, preferred screen structure and daily cleaning routine.
0.8mm vs 1.2mm Puck Screen Comparison
| Feature | 0.8mm | 1.2mm |
|---|---|---|
| Current product structure | 316 stainless-steel single-layer mesh | 304 stainless-steel double-layer |
| Thickness | 0.8mm | 1.2mm |
| Available sizes | 51mm / 53mm / 58mm | 51mm / 53mm / 58mm |
| Orientation | Flat on the tamped puck | Large-hole side up / fine-hole side down |
| Fit consideration | Thinner vertical profile | Uses 0.4mm more vertical space; verify headspace |
Material and Screen Structure
The 0.8mm version uses 316 stainless steel in a single-layer mesh structure. The 1.2mm version uses 304 stainless steel in a double-layer structure. These are different construction choices rather than a universal better-versus-worse ranking.
If you prefer the thinner profile, the 0.8mm option uses less vertical space. If you prefer the double-layer construction, the 1.2mm option adds 0.4mm of thickness and therefore needs a little more available headspace.
Choose by Basket Diameter: 51mm, 53mm or 58mm
Both current screen styles are available in 51mm, 53mm and 58mm sizes. Match the screen to the actual inner diameter and fit of your filter basket rather than choosing only by espresso machine name.
Before ordering, check the selected variant and your basket dimensions. A machine family name alone does not guarantee fit.
Check Headspace Before You Brew

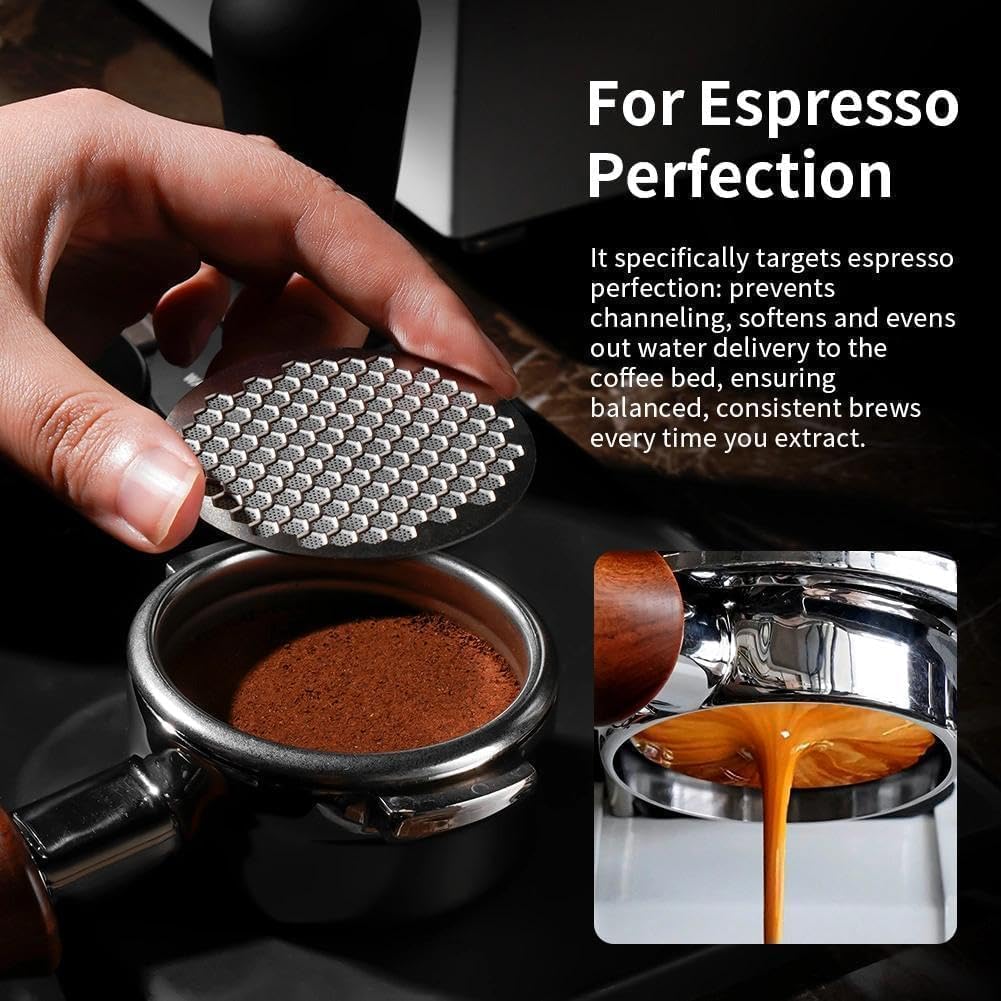

After tamping, place the puck screen flat on the prepared coffee puck. The portafilter should still lock into the group normally. If the screen prevents normal locking or feels forced, do not force the portafilter; re-check dose, basket headspace and screen choice.
The 1.2mm version uses 0.4mm more vertical space than the 0.8mm version, so headspace is especially worth checking when your basket is already filled close to its practical limit.
Which Side Faces Up on the 1.2mm Double-Layer Screen?
For the current 1.2mm double-layer model, place the larger-hole side facing upward and the fine-hole side facing down toward the prepared coffee puck.
Where the Puck Screen Fits in the Workflow
Dose → WDT → Level / Distribute → Tamp → Puck Screen → Brew
The puck screen is the final optional puck-prep step before brewing. It does not replace grinding, dosing, distribution or tamping.
Daily Cleaning
After use, remove the screen, rinse away visible coffee residue and allow it to dry fully before storage. Periodically perform a deeper clean when residue builds up in the mesh or holes. Keep both surfaces clear so the screen can sit flat during use.
Frequently Asked Questions
Is 1.2mm automatically better than 0.8mm?
No. The two versions use different materials and structures, and the better fit depends on your basket diameter, available headspace, preferred screen construction and cleaning routine.
Does the 1.2mm screen need more headspace?
Yes. It is 0.4mm thicker than the 0.8mm version, so it uses slightly more vertical space above the tamped puck.
Can I choose by espresso machine model alone?
No. Check the actual basket size and fit rather than assuming compatibility from the machine name alone.
Which direction should the 1.2mm double-layer screen face?
Use the larger-hole side upward and the fine-hole side downward toward the tamped coffee puck.
